Remote Management IEEE802.3ah SC Pon Port EPON ONU With CE Approval

Name: Remote Management IEEE8023ah SC Pon Port EPON ONU With CE Approval
Brand: Hioso
Price: 1 USD

Buy cheap Remote Management IEEE802.3ah SC Pon Port EPON ONU With CE Approval product

Place of Origin : China, Guang dong

Brand Name : Hioso

Model Number : 404WTR

Certification : CE, RoHS, CCC

MOQ : 1

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 6000pcs/month

Delivery Time : 3-10 work days

Packaging Details : 38X24X18 CM

Product name : WIFI ONU

Application : FTTX Solutions

Material : plastic

PON : 1 PON SC port

Power supply : DC12V

Transmission Distance : 20KM

Contact Now

4 Ports Wifi Epon Onu 1GE + 3FE + CATV + WiFi Compatible With Fttx Solutions

Overview

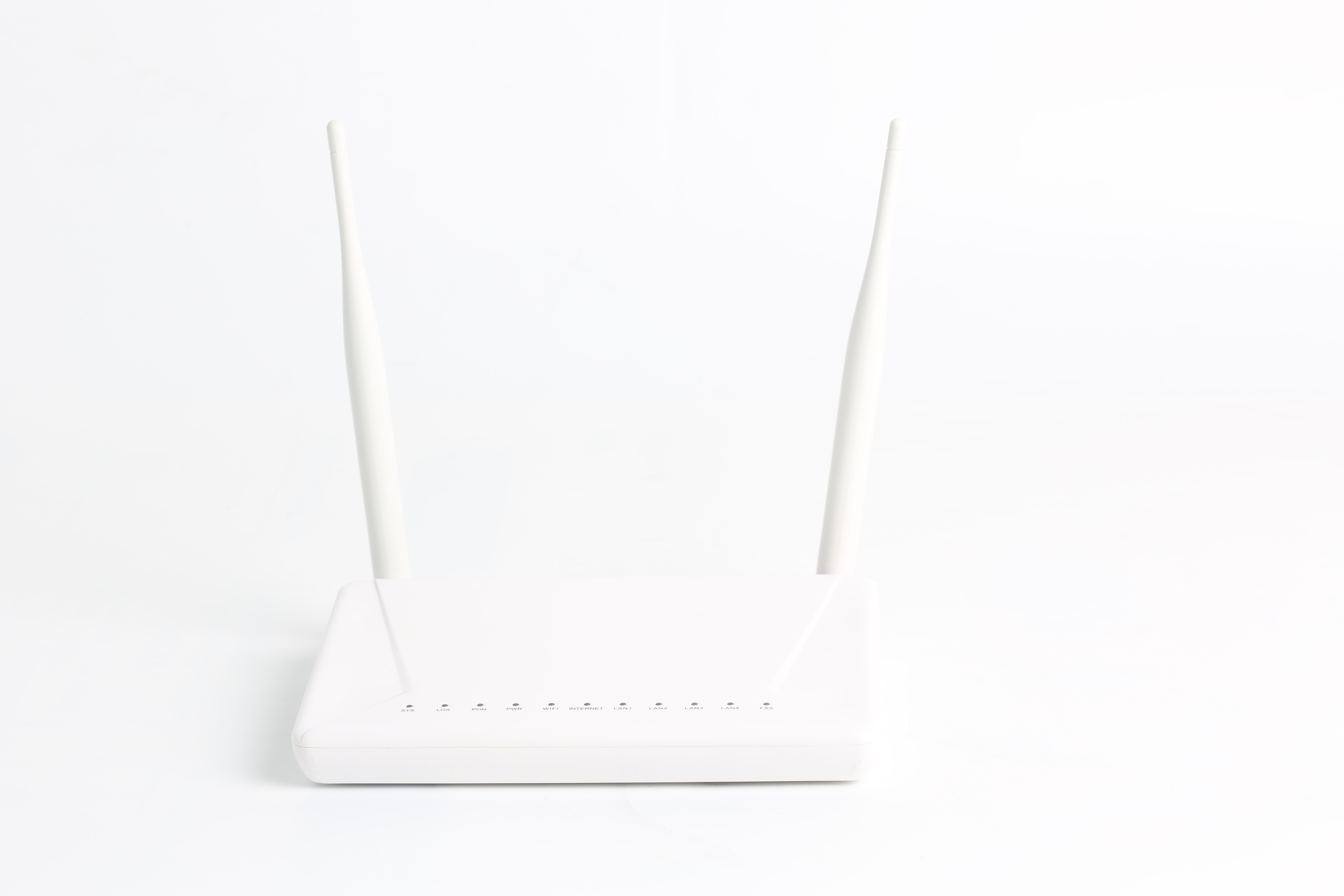

This is an ONU integrate with CATV optical receiver, supports fiber access based at EPON and CATV access based as HFC network. HA404WTS offers one EPON port, 4 10/100M Ethernet ports and one RF CATV port, and support WIFI function.

Feature

Support EMI and ESD identification
Support Support QinQ VLAN, 1:1 VLAN, VLAN reusing, VLAN trunk, etc.
Support multi LLID
Support user end auto time synchronization based at SNTP
Integrate CATV optical receiver
Support OAM and remote management

Technical Specifications

parameter	Specification
Wavelength	1310(TX)/1490(RX)
Optical power	-1~+4dBm
Receiving sensitivity	-24dBm
Maximum transmission distance	20 km
Cache space	1.25MB
MTBF	100,000 hours
PON port	SC
Feature	Support IEEE802.3ah Support Dynamic Bandwidth Allocation (DBA) Support ONU auto-searching and automatic registration (real-time operation)
CATV	Turn on/off RF output remotely Wavelength:1550 +/- 10nm Optical return loss:>45dB Input optical power:-8dBm~+2dBm RF frequency:47MHz~875MHz RF output lever:75~80dBuV CNR:>46dB, CSO: >58dBc, CTB: >58dBc RF output return loss: >14dB RF impedance:75Ohm
Standards	Support IEEE802.3, IEEE802.3u Support IEEE802.1q VLAN Support IEEE802.1p QOS IEEE802.11b/g/n
Management	Cooperating with center OLT, implement management configuration and software upgrade to ONU

Remote Management IEEE802.3ah SC Pon Port EPON ONU With CE Approval

Product Tags:

SC pon port EPON ONU

CE Approval EPON ONU

SC pon port ont epon

Remote Management IEEE802.3ah SC Pon Port EPON ONU With CE Approval Images
