2 1000M SC 3 1000M RJ45 Ports Fiber Media Converter ISO9001:2008

Place of Origin : China, Guang dong

Brand Name : Hioso

Model Number : FC1050R-S20-SC

Certification : CE, RoHS, CCC

MOQ : 1

Price : Negotiable

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 4000pcs/month

Delivery Time : 3-10 work days

Packaging Details : 38X24X18 CM

Product name : Ring Media Converter

Fiber port : 2 1000M FX fiber ports

Web management : Support

Function : Ring function

Ethernet port : 3 10/100/1000M RJ45 ports

Wavelength : 850nm/1310nm/1550nm

Contact Now

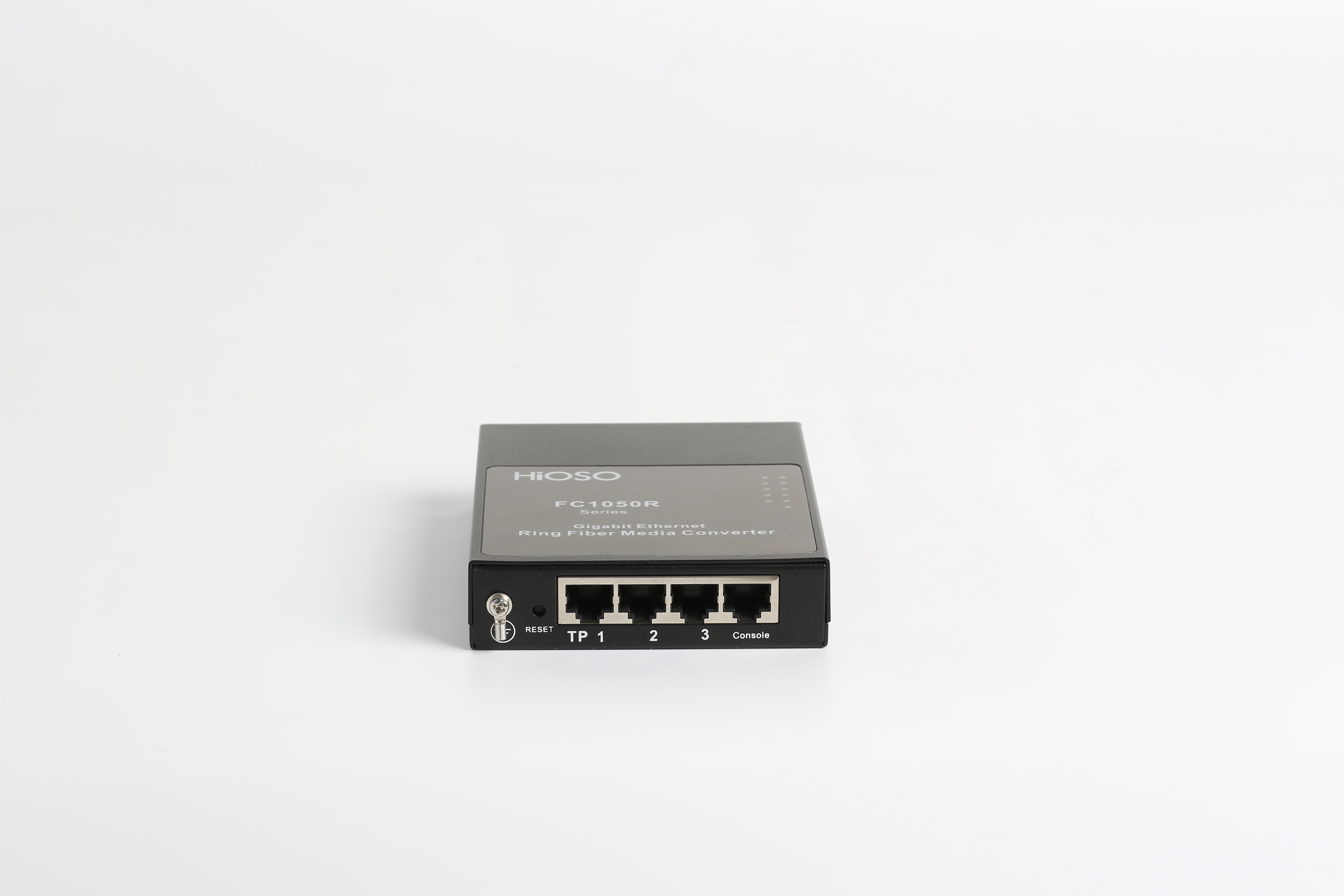

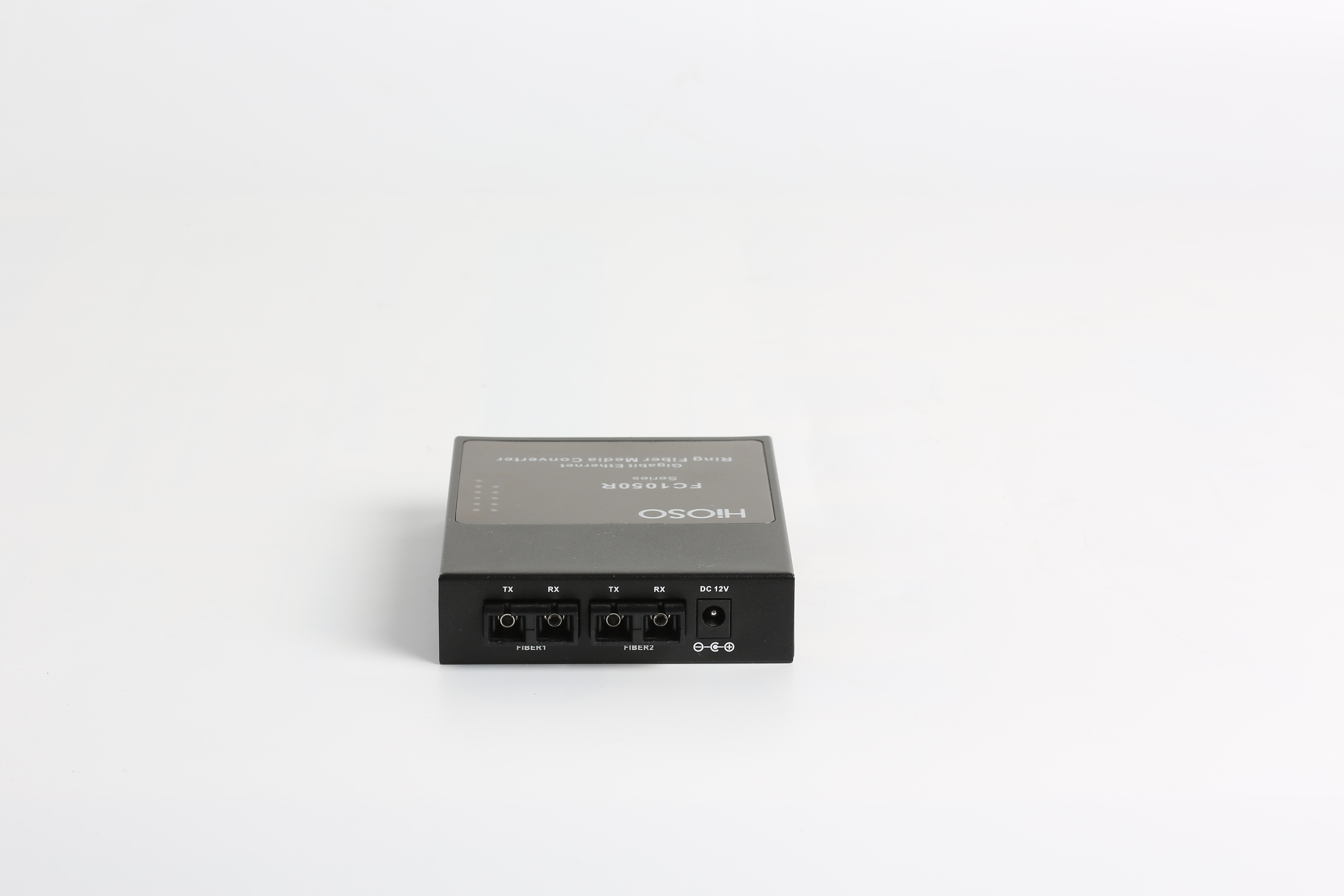

5 Ports Converter 2 1000M SC + 3 1000M RJ45 Ring Type Fiber Media Converter



overview



HiOSO FC1050R series Ring type Media Converter is designed to meet requirements of multi fiber access network. It provides 2 1000BASE-SX/LX fiber ports and 3 10/100/1000BASE-TX RJ45 ports, and one Console port, which provide not only point to point network connection, but also point to multi-point chain network. It support WEB management and RSR (Rapid Super Ring) and has extend the transmission distance of a network from 100m over copper wires to 120Km (single-mode full duplex) and is applied to highway network system, mine communication system and other chain multi-point networks.



Feature

  • Support gigabit fiber Hiper-Ring network
  • Support 128 ring network nodes
  • Support redundant ring network protection (switching time<50ms, RSTP/STP
  • Support WEB management, RSR (Rapid Super Ring)



Technical Specification

Parameters

Specifications

Standard

IEEE802.3 10Base-T Ethernet,IEEE802.3u 100Base-TX/FX Fast Ethernet, IEEE802.3ab 1000Base-T ,IEEE802.3z 1000Base-SX/LX Gigabit Ethernet, IEEE802.1d Spanning Tree

Wavelength

850nm/1310nm/1550nm

Transmission distance

Dual-fiber single-mode: 10/20/40/60/80/100/120Km

Port

3 RJ45 port: Connected to STP/UTP category-5 twisted pairs

2 fiber port: Multi-mode – SC (fiber size: 50,62.5/125μm)
Single mode – SC/FC fiber port (fiber size: 9/125μm)

Conversion mode

Medium conversion

Delay

<10us

Bit error rate

<1/1000000000

MTBF

100,000 hours

Power

DC 5V







2 1000M SC 3 1000M RJ45 Ports Fiber Media Converter ISO9001:2008

2 1000M SC 3 1000M RJ45 Ports Fiber Media Converter ISO9001:2008
