Name: 20km Transmission 4 Port FTTH OLT Fttx Solutions Supply Huawei Zte ONU
Brand: Hioso
Price: 1 USD

Brand Name : Hioso

Model Number : HA7304C-BP

Certification : CE, RoHS, CCC

Place of Origin : China, Guang dong

MOQ : 1

Price : Negotiable

Payment Terms : T/T, Western Union, MoneyGram, D/P

Supply Ability : 500pcs/month

Delivery Time : 3-10 work days

Packaging Details : 48*35*15 cm

Product name : EPON OLT

Distance : 20KM

Material : Metal casing

Customization : Support

Application : FTTX Solutions

Port : 4 SFP G-EPON + 2 SFP + 2Combo Port

Contact Now

Epon Olt 1U Rack 4 Port Ftth Olt Supply Huawei Zte Onu Dual Power Supply

Feature

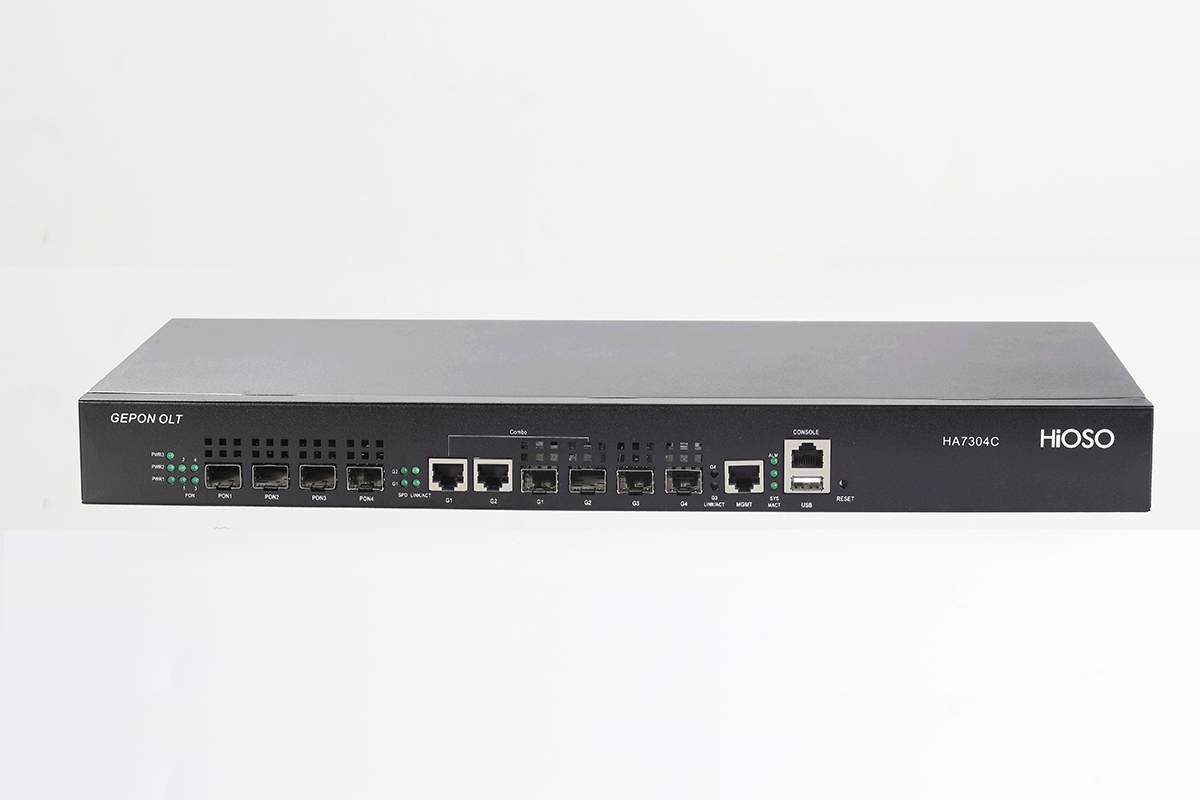

(1) Supply 4 SFP PON ports, 2 1000M SFP uplink ports, 2 Combo uplink ports

(2) Each PON port support 1:64 split ratio, total 1256 ONUs access

(3) Distance can reach 20km under 1:32 split ratio

(4) Support WEB and SNMP, integrate switching function

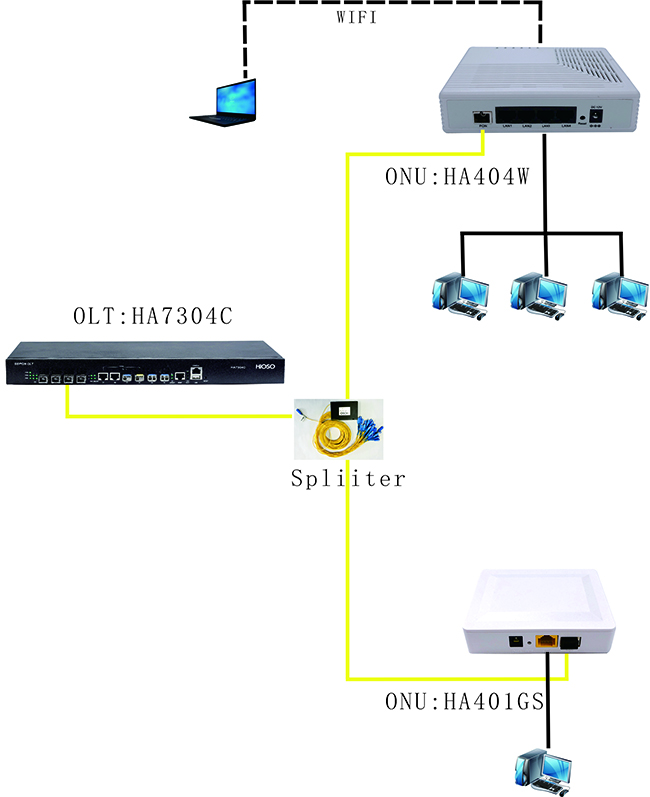

Application

Apply for town,village fiber network and surveillance, apply for FTTX network,

to transmit IP phone, data,IPTV and other IP services access.

Technical Specification

Parameter	Specification
Operating wavelength	1310(RX) /1490(TX)
Optical power	+2.5 ~ +7dBm
Receiving sensitivity	-30dBm
Max distance	20km
Max splitter ratio	1:64
Capacity	4 PON, maximum 256pcs ONU
MAC	8k
Uplink port	2 SFP ports + 2Combo ports
PON port	4 SFP 1000M fiber ports
Control port	1 10/100/1000M RJ45 port 1 Console(RJ45), to debug the device 1 USB port
MTBF	100,000 hours
EPON traits	Support IEEE802.3ah
	Support DBA with minimum1Kbps granularity adjustable
	Support 1Gbps up link and down link symmetrical bandwidth
	Support AES-128 encryption to each Logical Link Identifier
	Support powerful OAM function, implement telnet management, maintenance and upgrade
	Support auto discovery and auto register of ONU (real-time operation)
Protocols supported	Support IEEE802.3,IEEE802.3u,IEEE802.3ab,IEEE802.3z
	Support IEEE802.1Q VLAN,IEEE802.1d Spanning Tree
	Support IEEE 802.1P QoS,IEEE802.3X Flow Control
	Support IEEE802.3ad Trunk,IEEE802.1W RSTP
Network management	Support GUI management based on SNMP
Network management	Support WEB and Telnet GUI management based on CLI
Other functions	Support 1GMPv1/v2 protocol report, query and leave message mouse
	Support DHCP Snooping
	Support Ipv4 address learning based at DHCP Snooping
	Support ARP Snooping, QoS etc

Working Environment

Parameter	Specification

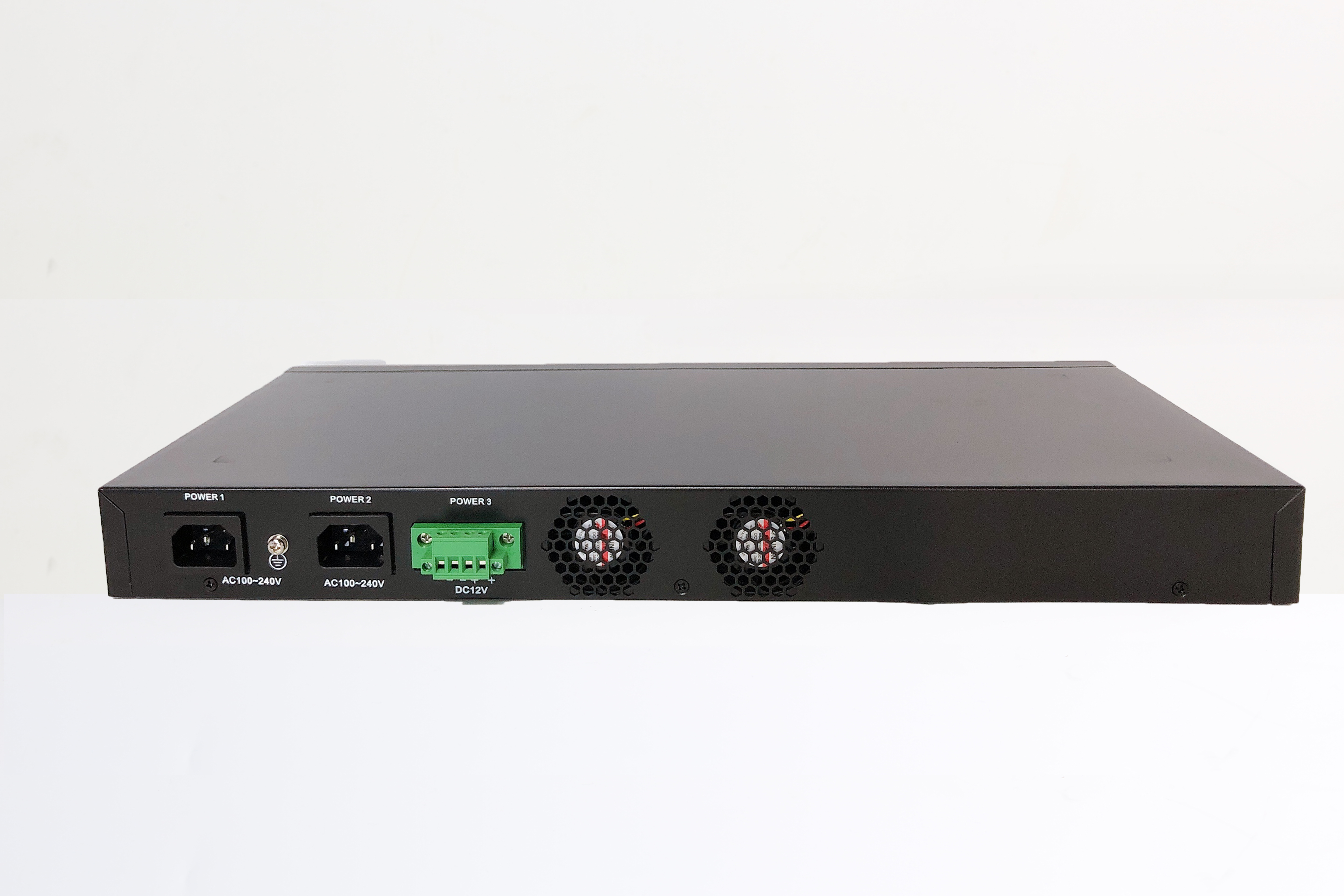

Power	AC100~240V 50/60HZ,DC12V/5A redundant three power supply
Power Consumption	25W
Operating temperature	-10—55 C
Storage temperature	-40—70 C
Humidity	5%--90% non-condensing
Dimension	440mm(length) * 210mm(width) * 44mm(height)
